Designed with space constraints in mind when used in existing cabinets or machines, the EDS-2000-EL series of unmanaged Ethernet switches come in five- and eight-port Ethernet options, with the five-port model measuring 18 × 81 × 65 mm. The switches meet demands for flexibility, reliability, and continuity. Specifications include SC/ST fiber models available for the EDS-2008 series, support for 12/24/48 VDC input, microsecond-level latency, high EMC resistance, and QoS and BSP*** DIP switch configuration.

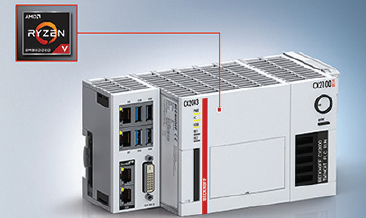

The CX20x3 embedded PCs include processors made for 32-bit and 64-bit systems, such as TwinCAT 2 and TwinCAT 3 automation software. The CX2033 is a fanless device without rotating parts using an AMD Ryzen V1202B CPU (2.3-GHz clock frequency, two cores). The CX2043 is a high-performance device with a ball-bearing-mounted and speed-controlled fan equipped with an AMD Ryzen V1807B CPU (3.35-GHz clock frequency, four cores). The processors’ Zen architecture combines high computing power with a high clock frequency. Graphics are integrated separately from the CPU cache, enabling “excellent” real-time characteristics. Users can select the Microsoft Windows 10 IoT Enterprise 2019 LTSC or the new TwinCAT/BSD operating system.

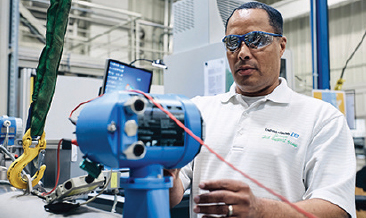

Instrumentation that controls critical quality processes needs to be regularly checked, validated, and calibrated. You can do it yourself or can use third-party providers of fast, traceable, and accredited service. Endress+Hauser can perform and advise on all aspects of calibration, from in-situ testing to fully accredited factory calibration, regardless of brand or maker. A2LA-accredited calibration facilities in Greenwood, Ind., and Pearland, Texas, calibrate flowmeters, pressure sensors, and temperature sensors. The company can also perform on-site calibration using its mobile reference tools and service organizations in the U.S. and in many other countries.

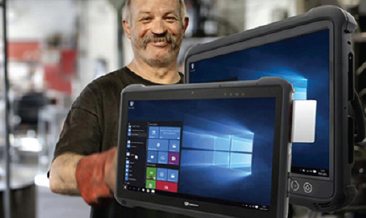

The Rocktab Ultra U200 series of industrial tablets have Intel processors, up to 16 GB RAM, a screen brightness of up to 1000 cd/m2, and a viewing angle of 89° from all sides. The touchscreen can be operated with fingers, work gloves, or the supplied touch pen. Operation in the rain or with a dirty touchscreen is also possible. The Rocktab U212 has an 11.6-inch display, and the Rocktab U214 has a 13.3-inch display. The U212 is 22 mm deep—one of the slimmest tablets in its class. Both are fully IP65 certified and, with MIL-STD-810G military certification, can withstand accidental drops from a height of 1.20 m. They also have large, user-replaceable batteries, with the battery of the U212 being hot-swappable. A built-in 2x2 MU-MIMO WLAN adapter supports 802.11ax, is Wi-Fi 6 certified, and enables data rates of up to 2.4 Gbps. The integrated Intel My Wi-Fi technology lets the tablets act as their own access points when needed.
