Focus on final control elements

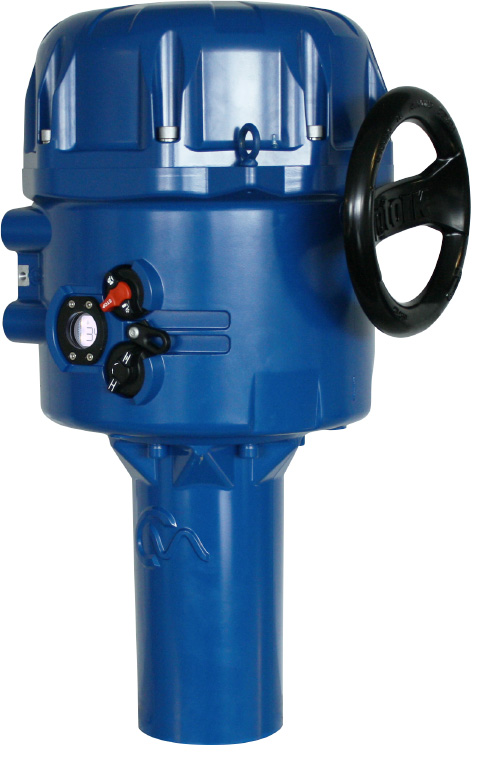

Modulating actuators
The CML-1500 and CML-3000 models, including those with hazardous area approvals, are watertight to IP68 for temporary submersion (7 meters, 72 hours). The optional reserve power pack uses supercapacitors to give the actuator enough stored energy to perform predetermined action on mains power failure, such as moving to the fully closed position, the fully open position, or anywhere in between. Manual operation is available as standard.
The electric solution is suitable for a variety of applications found in sectors such as power generation, chemicals, petrochemicals, and the majority of other process industries. The sizes are designed for linear valve control with modulating duty, generally in remote locations, such as oil pipelines and remote gas extraction stations where power supplies are limited. Single-phase or DC electrical power is all that is required for control valve actuation .
Rotork
www.rotork.com
Eccentric plug rotary control valve
With bidirectional flow capability, the valve can handle mediums that are normally flowed to open and flowed to close. The plug action allows the plug to break free of the seat ring upon initial rotation of the shaft. The valve has a rangeability of 100:1 for precise throttling over a wide range of flows. It also has a self-aligning orbital seat, which allows orbital movement of the seat ring to provide self-alignment with the plug at assembly.
Leslie Controls
www.circor.com
Variable frequency drive
The ACQ580 variable frequency drive (VFD) for the water and wastewater industries optimizes wire-to-water or air efficiency. It also works to improve flow and reliability in municipal pumping and aeration applications.
The VFD includes elements that are specifically designed for municipal markets. For example, the pump clean feature dislodges debris from impellers, while the sensorless flow calculation provides flow measurement without a flowmeter. The soft pipe fill mode reduces water-hammer damage, while the quick-ramp protects submersible pumps. The ACQ580 is compatible with the company’s Ability condition monitoring service, which gives customers real-time data about the status and performance of the monitored equipment from any location.
The VFD also has dry-run protection that prevents pumps from running without water and embedded PID controllers that automate flow, pressure, level, and dissolved oxygen. Multipump control manages operation of up to eight pumps simultaneously. The device also includes integrated safety features, such as safe torque-off and a maximum speed limit to protect against over speeding.
ABB
www.new.abb.com

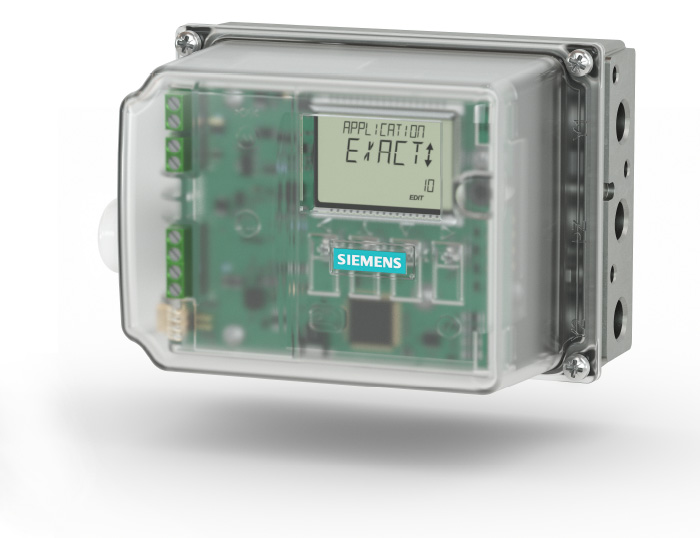

Valve positioner
The device is fitted with a display so users can see its status at a glance. With its four-button operation and Namur NE107 support, the device can be configured. The valve positioner is available in two enclosure variants: polycarbonate and aluminum. It uses contactless technology to detect the position of the valve. Equipped with a corrosion-resistant silencer, the device is suited to applications in the chemical and power sectors.
The Sipart PS2 has some new features. Optional pressure sensors improve the valve diagnostics and process monitoring, increasing the degree of utilization and availability of the plant. The positioner supports digitalization in plants. The company’s valve monitoring app gives users all the information they need to follow a predictive maintenance approach by performing cloud-based analyses of valve data. It makes control and analysis options available to users so that they can detect when service tasks need to be carried out in good time before faults occur.
Siemens
https://new.siemens.com/global/
